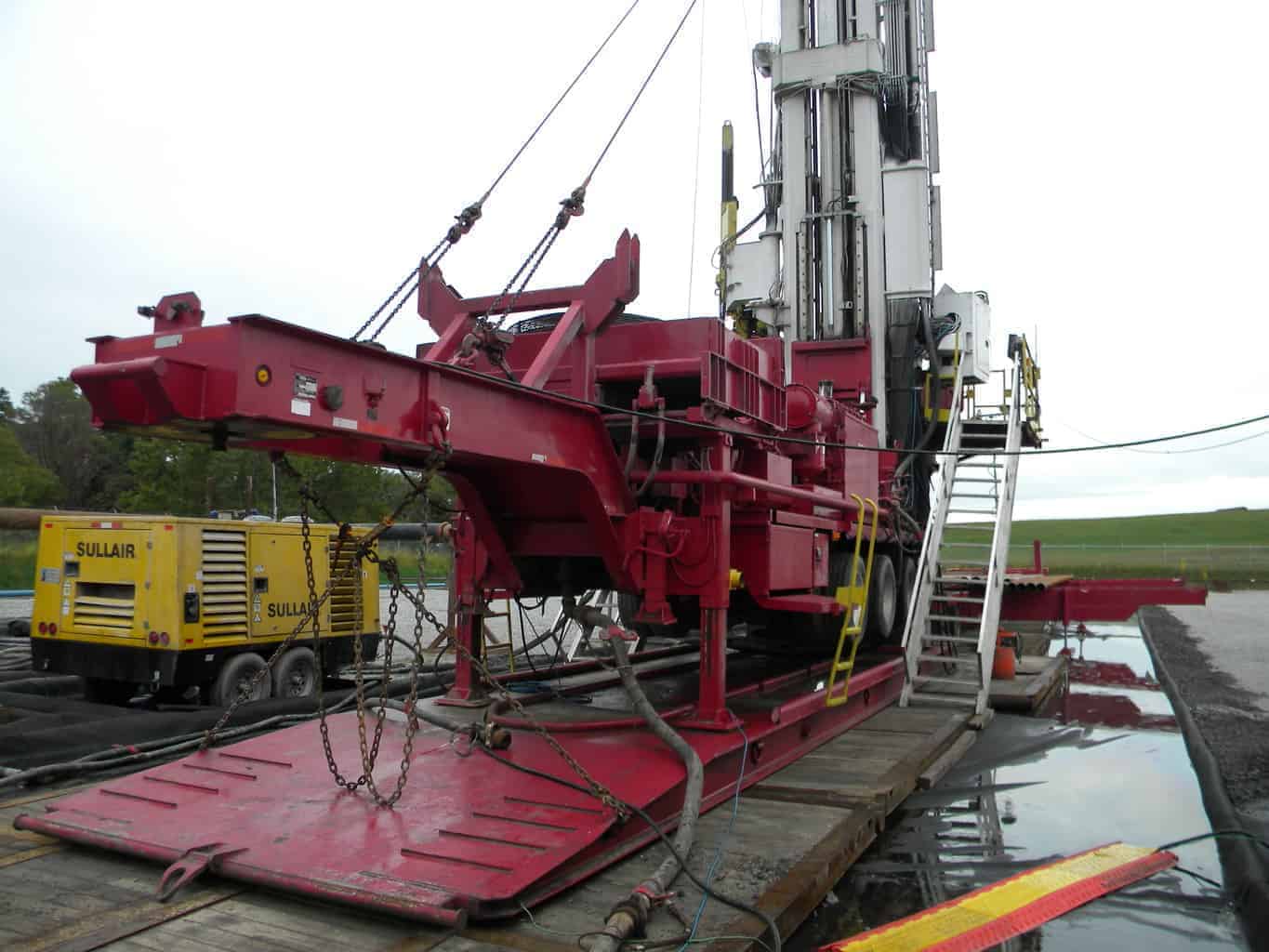

Listing details
Deck Engine
– Detroit Diesel DDC/MTU 12V-2000TA DDEC
– 760 bhp (567 kw) @ 1800 rpm
– (2) 110 gallon (415 I) fuel tanks
– Air or electric start available
Cooling
– Two core, side by side heat exchanger w/ variable speed cooling fan
– 130oF (54oC) ambient design temperature
Mast
– Telescoping mast design permits long head travel and working height, yet short
overall length in transport position
– Free-standing mast design
– Hydraulically operated adjustable mast
feet and slip box
Tilting Top Head Drive
– Heavy Duty, single reduction gearbox with 4 two-speed disc valve type hydraulic motors
– Infinitely variable rotation speed via HRC control
– Torque: 0-90 RPM @ 17,750 ft-lbs (24,066 N-m). 0-180 RPM @ 7,670 ft-lbs (10,399 N-m)
– Rotation speed: 0-180 RPM
– Max operating pressure: 3,000 psi (208 bar)
Feed System
– 50 ft (15.24 M) head travel
– 200,000 lbf (890 kN) hoist capacity
– 100 fpm (30.5 m/min) hoist speed
– 32,000 lbf (142 kN) pulldown
– 200 fpm (61 m/min) pulldown speed
Drill Table
– Table Opening: 30 inches (768 mm) diameter with table retracted
– Hydraulically retractable slip box
Drill Pipe and Casing
– Range III tubular capability
– 30 inch (762 mm) maximum diameter through the slip box
LoadSafe Automated Pipe Handling System
– Lifts drill pipe and casing from horizontal position into alignment with tilting top head
– Racks and stores tubulars
– Positions blowout preventer
– 47 ft (14.3 m) maximum tubular length, Range III
– 30 inch (0.76 M) maximum diameter casing capacity
– 5,000 lb (2,268 kg) tubular lift capacity
Winch
– Planetary design with spring applied hydraulic release brake
– 9,600 lbf (42.7 kN) bare drum line pull
– 150 fbm (46 m/min) bare drum line speed
– Hydraulic jib boom swing and extend
– Auxiliary winch
Outriggers
– Dual Front– 5 inch (127 mm) bore x 36 inch (0.91 m) stroke
– Dual Rear– 5 inch (127 mm) bore x 41 inch (1.04 m) stroke
Hydraulic System
– Open loop load sensing system
– 210 gallon (795 I) system capacity
– 7 micron filtration
Electrical System
– 24 volt DC electrical system
Rig Weight and Dimensions*
– OA length, transport: 53 ft (16.2 m)
– OA width: 9 ft 6 inches (2.9 m)
– OA height, transport: 13 ft 6 inches (4.12 m)
– Rig trailer weight: 95,000 lbs (43,091 kg)
– Pipe handling trailer weight: 40,000 lbs (18,144 kg)
*For general illustration only, varies with rig configuration
Standard Accessories
– Tool box
Optional Equipment
– Hydraulic roughneck
– Power slips with Schramm Bowl
– Tool lubricator systems
– Hazardous area lighting package
– Integral sub-base
