Description
- Mast has been re-certified.
- All new hydraulic hoses and fittings have been installed
- Detroit engine has also been rebuilt and the entire rig has been repainted
- Date of Manufacture: August 2008
- In Service Date: March 2010
- Fast Moving Highly Mobile Rig
- 130,000 lbs. (59,090 kg) actual pullup
- T130XD will get you to the job site when access roads require a compact machine
- Range III casing
- Hydraulic Catwalk (Load Safe)
- Trailer Mounted 25 FT Dog House
- 5 FT Floor and 30 FT Base Beam

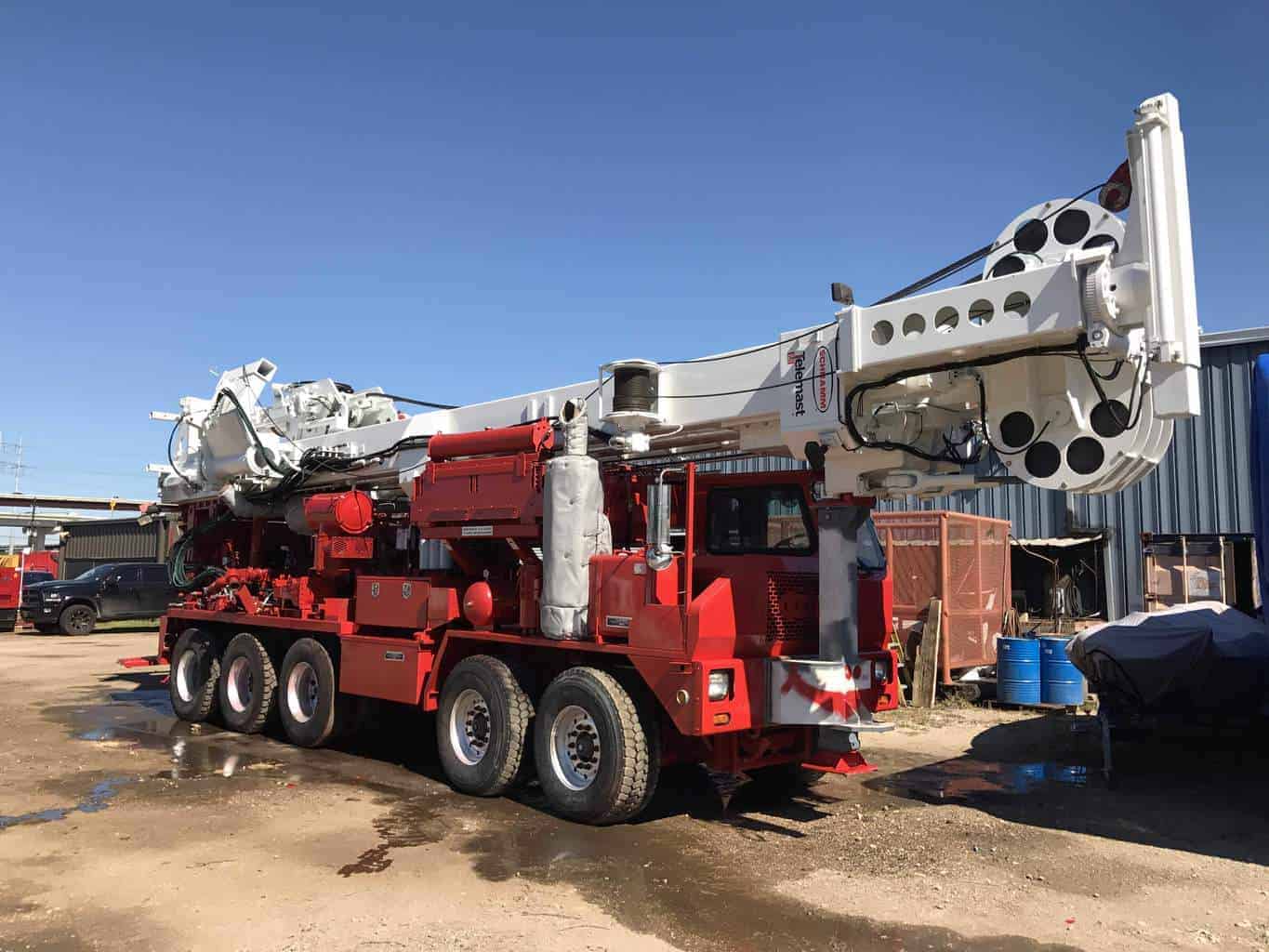

- Crain Carrier T130XD – Ready for Mobilization
- 3500 FT 4 ½ XHole Drill Pipe
- (12) 6 inch 4 ½ XHole DC
- (3) 8 inch DC
Deck Engine
– Detroit Diesel DDC/MTU 12V-2000TA DDEC
– 760 bhp (567 kw) @ 1800 rpm
– 2 x 110 gallon (415 l) fuel tanks
– Air or electric start available
Carrier
– CCC 8 x 4 carrier
– Cummins engine rated 425 hp @ 2,100 rpm
– 44,000 lb (19,955 kg) front axle
– 21,500 lb (9,750 kg) pusher axle
– 52,000 lb (23,587 kg) full locking rear axle
– 117,500 lb (53,298 kg) GVWR
Feed System
– 50 ft (15.24 m) head travel
– 130,000 lbf (578 kN) pullback
– 125 fpm (38.1 m/min) pullback speed
– 32,000 lbf (142 kN) pulldown
– 270 fpm (82.3 m/min) pulldown speed
Drill Pipe and Casing
– Range III tubular capability
– 28 inch (711 mm) maximum diameter
through the slip box
Outriggers
– Single Front: 5 inch (127 mm) bore x 41 inch
(1.04 m) stroke
– Dual Rear: 5 inch (127 mm) bore x 41 inch
(1.04 m) stroke
Winch
– Planetary design with spring applied
hydraulic release brake
– 9,600 lbf (42.7 kN) bare drum line pull
– 150 fpm (46 m/min) bare drum line speed
Hydraulic System
– Open loop load sensing system
– 200 gallon (760 l) system capacity
– 7 micron filtration
Water Injection System
– 25 gpm (95 lpm) water pump
– Electric foam pump
Tool Lubricator
– Positive displacement, air operated piston
type pump
– Oil flow: 0 – 5.0 g/hr (0 – 19 l/hr)
Drill Table
– Table Opening: 20 inches (508 mm) or 28 inches (711 mm) with table retracted
– Hydraulically retractable slip box
