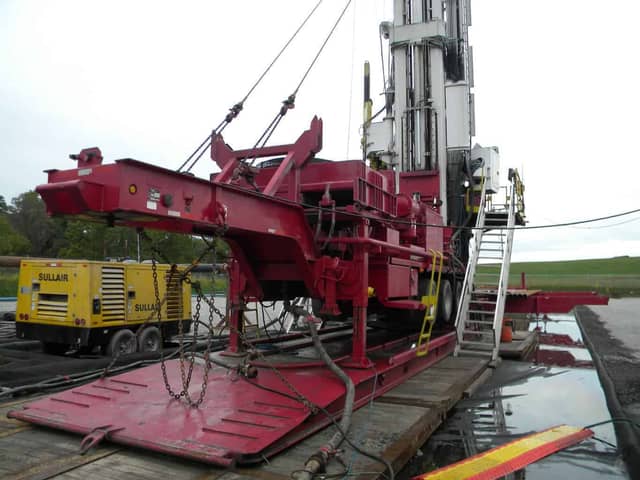

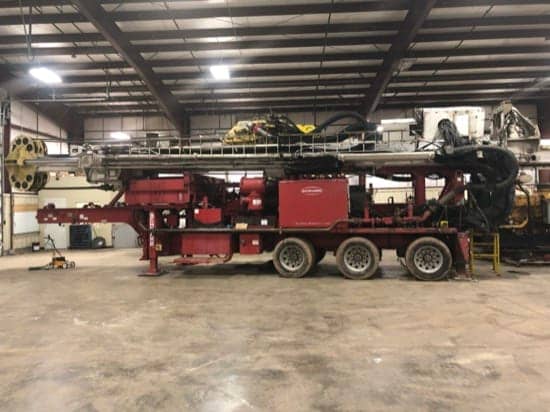

Deck Engine | Detroit Diesel DDC/MTU 12V-2000TA DDEC
760 BHP (567 kW) @ 1800 rpm
(2) 110 gal (415 L) fuel tanks
Electric start |
Cooling | (2) Core side-by-side heat exchanger with variable speed cooling fan
130oF (54oC) ambient design temperature |

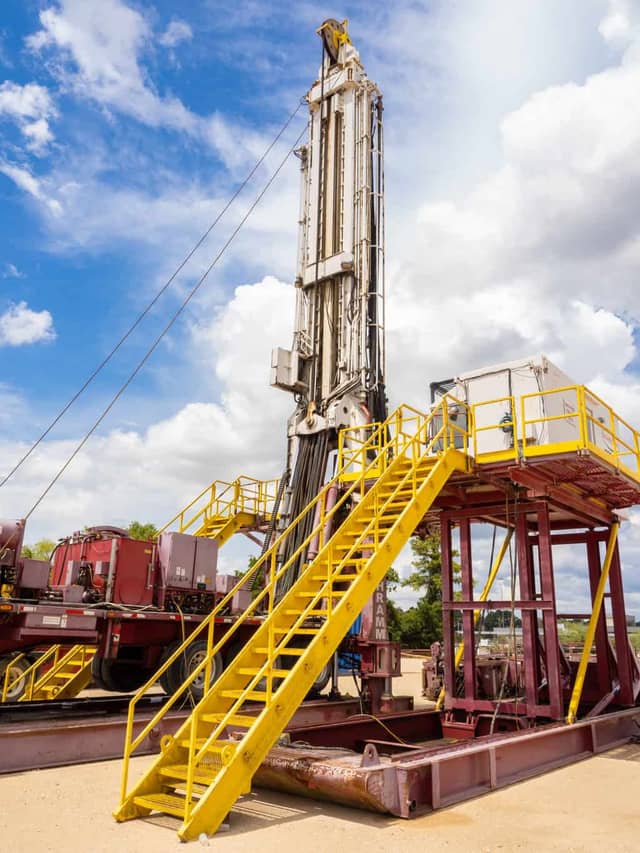

Mast | Telescoping mast design permits long head travel and working height, yet short overall length in transport position
Hydraulically operated adjustable mast feet and slip box |
Tilting Top Head Drive | Heavy duty single reduction gearbox with 4 single speed hydraulic motors
Infinitely variable rotation speed via HRC control
Torque: 0-90 rpm @ 17,750 lbf-ft
Rotation speed: 0-90 rpm
Maximum operating pressure: 5,000 psi |
Feed System | 50 ft (15.24 m) head travel
200,000 lbf (890 kN) hoist capacity
100 ft/min (30.5 m/min) hoist speed
32,000 lbf (142 kN) pulldown
200 ft/min (61 m/min) pulldown speed |
Drill Table | Table Opening: 30 in. (768 mm) diameter with table retracted
Hydraulically retractable slip box
12’ KB |
Drill Pipe and Casing | Range III tubular capability
30 in. (762 mm) maximum diameter through the slip box |
Loadsafe Automated Pipe Handling System | Lifts drill pipe and casing from horizontal position into alignment with tilting top head
Racks and stores tubulars
Positions blowout preventer |
Winch | Planetary design with spring applied hydraulic release brake
9,600 lbf (42.7 kN) bare drum line pull
150 ft/min (46 m/min) bare drum line speed
Hydraulic jib boom swing and extend
Auxiliary winch |
Outriggers | Dual Front: 5 in. (127 mm) bore x 36 in. (0.91 m) stroke
Dual Rear: 5 in. (127 mm) bore x 41 in. (1.04 m) stroke |
Hydraulic System | Open loop load sensing system
210 gal (795 L) system capacity
7 micron filtration |
Electrical System | 24 V DC electrical system |
Rig Weight and Dimensions | OA length, transport: 53 ft (16.2 m)
OA width: 9 ft 6 in. (2.9 m)
OA height, transport: 13 ft 6 in. (4.12 m)
Rig trailer weight: 95,000 lb (43,091 kg)
Pipe handling trailer weight: 40,000 lb (18,144 kg) |
Standard Accessories | Tool box |
Additional Equipment | Hydraulic roughneck
Power slips with Schramm bowl
Tool lubricator systems
Hazardous area lighting package
Integral subbase
47 ft (14.3 m) maximum tubular length, Range III
30 in. (0.76 m) maximum diameter casing capacity
5,000 lb (2,268 kg) tubular lift capacity |
