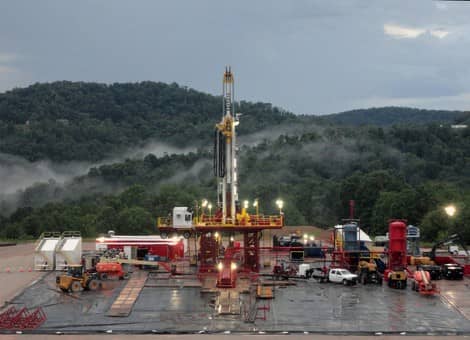

• 500,000 lbs. (226,796 kg) hook load rig in a portable over the road package
• 80,000 lbf. (356 kN) hydraulic pulldown for precise weight on bit control
• Control cabin with joystick controllers for drilling and pipe handling operations
• Self-erecting in a matter of hours without the use of a crane
• Power breakout, table and slips maximize safety on the drill floor
• LoadSafe XD hands-free Range III pipe handling system included

Power Unit

• (2) MTU 12V-2000 engines, 760 bhp (567 kw) @ 1,800 rpm with electric start
• (2) Dual core, side by side cooling package, 130°F (54.4°C) ambient rating
• (2) 220 gallon (930 l) diesel fuel tanks
• (2) Hydraulic pump systems, with each including (8) piston pumps and (1) gear type pump
• (1) 1,000 gallon (3,785 l) hydraulic tank with (18) twin element filters

Sub-base and Walking System

• Floor Height: 22 ft. (6.7 m)
• Clearance: 19 ft. (5.8 m) under table bushing
• Ground Pressure:
  1. Dead Load: 26 psi (1.8 bar)
  2. Live Load: 57 psi (3.9 bar)
  3. Walking, mast down: 41 psi (2.8 bar)
• A dedicated diesel engine, hydraulic pump and 750 gallon (2,839 l) hydraulic tank are included with the system

Telemast System

• Top Head Travel: 56 ft. (17.07 m)
• Hook Load: 500,000 lbs. (227,227 kg)
• Actual Hoist Speed (both Engines):
  • 0-130,000 lbs. @ 136 fpm (0 – 58,967 kg @ 41m/min)
  • 101,000 – 285,000 lbs. @ 106 fpm (45,813 – 129,274 kg @ 32 m/min)
  • 286,000 – 305,000 lbs. @ 100 fpm (129,727 – 138,346 kg @ 30 m/min)
  • 306,000 – 419,000 lbs. @ 76 fpm (138,799 – 190,055 kg @ 23 m/min)
  • 420,000 – 500,000 lbs. @ 64 fpm (190,509 – 226,796 kg @ 20 m/min)
• Pulldown Capacity: 80,000 lbs. (36,363 kg)
• Pulldown Speed: 0-180 fpm (0 – 55 m/min) loaded, 0-200 fpm (0 – 61 m/min) free head

Tilting Top Drive

• Power: 950 bhp (708 kw)
• Rotation Speed: 0-140 RPM
• Rotation Torque: Up to 35,000 ft-lbs (47,454 N-m)
• Swivel: 3 inch (7.6 cm) cartridge style
• Fluid Pressure Rating: 5,000 psi (345 bar

Rig Floor

• 37.5 inch (0.95 m) false table adapter and a 27.5 inch (0.7 m)
• Master Bushing 22 ft. (6.7 m) floor height 19 ft. (5.79 m) under table clearance

Hydrualic Roughneck

• Clamping Range: 4.5 – 9.625 inches (11.43 – 24.45 cm) diameter
• Clamping Force: Adjustable up to 61,500 lbs @ 3,000 psi (273 kn @ 208 bar)
• Make/Break Torque: 60,000 ft-lbs @ 3,500 psi (81,349 N-m @ 241 bar

LoadSafe® XD Pipe Handling

• Built-in holding clamps with variable capacity from 4 – 24 inches (10 – 61 cm) allow for make-up or break-out of tool joints from the top drive spindle
• Capacity: Range III
• Maximum Lift Capacity: 10,000 lbs. (4,536 kg)
• Average Trip Time: 1,500+ f/h (457+ m/h )

Main Winch

• Bare Drum Pull: 9,600 lbf. (42.7 kN))
• Bare Drum Line Speed: 150 fpm (46 m/min)
• Hydraulic jib boom swing and extend

Standard Accessories

• Water injection system, 35 gpm (132.4 lpm) @ 1,000 psi (69 bar)
• DTH lubricator up to 5 gph (19 lph) @ 1,000 psi (69 bar)
• Air manifold for air drilling operations
• Air/mud fluid lines, 4 inch (10 cm) stand pipe and traveling hose for 5,000 psi (345 bar) operation
• Explosion proof 240V lighting for nighttime operation (customer supplied generators)
• BOP handling system, carriage and trolley rated 40,000 lbs. (18,144 kg)
