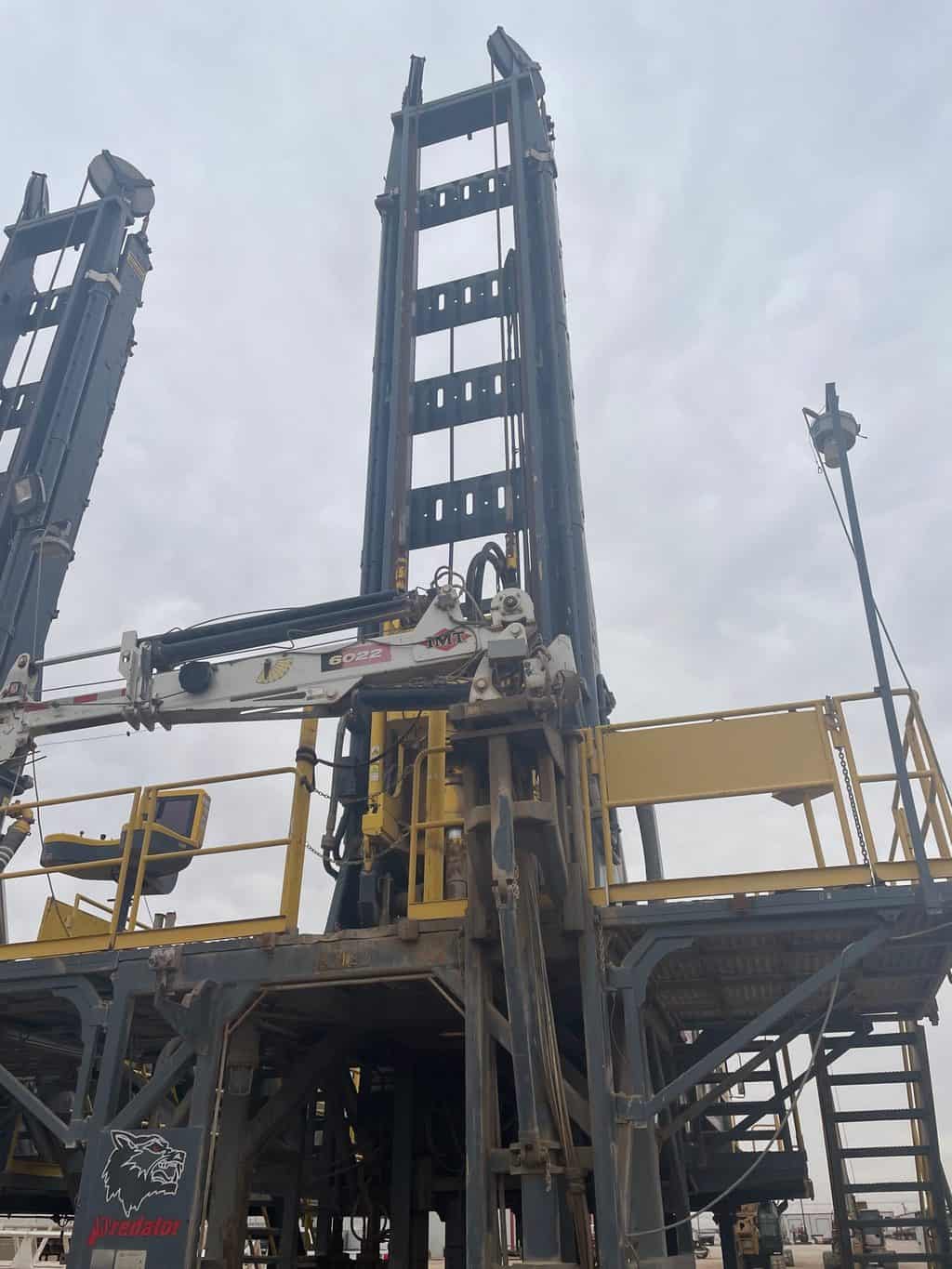

Complete Rig Package

Mast Height: 47′
Static Hook Load 220,000 LBS
Guylines: None
C-27 Caterpillar Deck Engine, Rated 950hp
Fuller RTO F-14908LL 8-Speed Transmission
500hp Hydraulic Drive Motor, 69,000lb Tridem
Rear Axles w/ Driver Controlled Inter-Axle w/ Differential Locks, 44,000lb Tandem Front Axles 445/65R22.5 Tubeless Radial Steer Tires w/ 11R22.5 / 14 Ply Tubeless Radial Rear Tires
ABS Braking w/ Low Profile Two Man Cab
150 Gallon Aluminum Fuel Tank
Range Ill Hydraulically Telescoping Tower, Rated 200,000lb Maximum Hook Load Hydraulically Actuated, Two Speed, Tilt Out, Top Head Drive Assembly, Rated 30,000lbs Torque 5″ ID Spindle Predator Sub Structure Support System
42″ Floor Opening, 27 1⁄2″ Table Opening, 17 1⁄2″ Slip Bushing
Hydraulic Slips & Roughneck
10′ x 24′ x 8′ Work Floor
4.2 Ton Electric Floor Crane
3,000psi Air/Mud Piping
Oilfield Night Lighting Package
Offboard Generator Connection
Self-Contained Drillers Console w/ Military Grade Flat Screen Monitor
Easy Access Hydraulic Valve Bank
Catwalks, Railings, Fold Up Rig Floor Deck
Predator Hands Free Tubular Loading System
4 1⁄2″ to 24″ Diameter Capability from 30′ to 42′ Lengths
9,000lb Maximum Handling Weight Capacity
Remote Loading & Driller Console Connection Operating Controls
Self-Contained Oilfield Skid Mounted

Alco Table Slips & Holders Dressed to 4 1⁄2″ Skate Clamps up to 13 3/8″
Located in the Permian Basin Area
