Listing details
General Rig Specifications
HP Rating: 750HP
Powered By: (1) Series 60 MTU Engine (665 BHP @ 1,800 RPM); Allison 6610 Auto Transmission

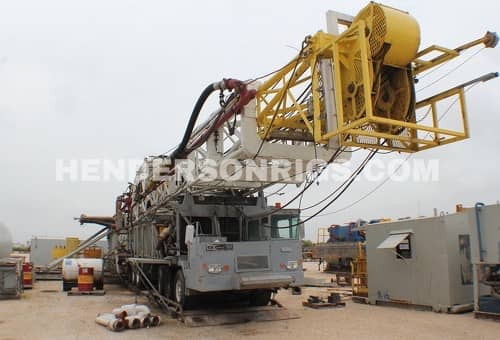

Rig Type: Self-propelled, carrier Mounted, 7-Axle (14×4), Internally guyed
- Single drum drawworks
- One Eaton Model WCBD-324 Brake, water cooled
- Main drum Lebus grooving
- Automatic Crown Saver safety shutoff device to limit block travel, installed on drawworks
- Hydraulic system, including winch, power tongs circuit, raising, telescoping, leveling and make and brake cylinders
- Mechanical drill line spool rack for 3,000 ft of 1-1/8-inch drill line
Drawworks
Model: S&S 750 HP, SD
Speeds: 5-forward + Reverse
Brake Type: Water Eaton, WCBD-236
Drill line size: 1-1/8″
Crown Saver: Included

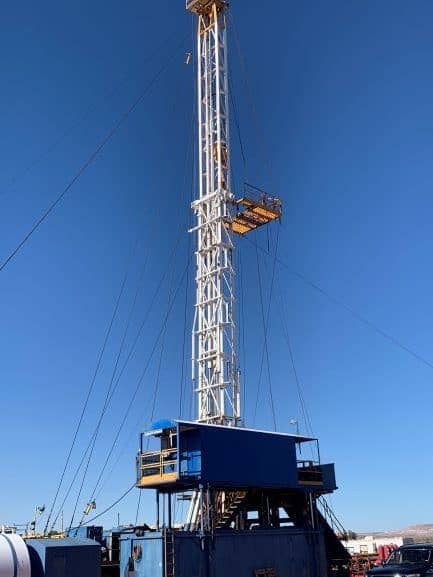

Mast (API-4F, PSL-2)
Height: 118′, Telescopic
Hook load: 350,000 lbs.
Mast Raising: Hydraulic
Racking cap.: 10,800ft of 5″ R-II DP / Adjustable fingers for 2-7/8″ to 5″ DP
Standpipe: 4″ x 5,000 psi, Single
Hydraulic Cat-works: Included
- API guyed telescoping mast with fixed base
- Equipped with ladder, safety platform, handrails, fall arrest post, block cradle, two belly lines and two load lines
- Automatic erecting racking board for use with 14 ft substructure
- Make up and break out cylinders mounted on back of mast
Carrier
No. of axles: 7-axles
Leveling Jacks: (4) Hydraulic + (2) manual
Fuel Tank: 100 Gal (on-board)
Toolboxes: (1)
Drill line spool rack: Included
Deadline anchor: Included
Rig Ramp: Included
Rig Hyd. System: Included
- Self-propelled, back-in carrier
- Driller’s side and off-driller’s side folding walkways and handrails
- Highway lighting package
- Three front non- drive steering axles with rear wheel drive tandem axles, and two (2) non-drive pusher/tag axle
- All axles equipped with air braking system
Substructure (Hydraulic Telescopic Lift)
Floor Height: 14′ Hydraulic raised
Setback Cap: 250,000 lbs.
Rotary Cap: 350,000 lbs.
Clearance: 11’-6”
- Chain driven rotary with 2-piece case with adapters for 27½ inch rotary table
- Mud boat, including steel checker plated tire guide rails and heavy-duty lugs for pinning to the load beam
- Load beam to match the mast loading requirements
Traveling & Rotary Equipment
Block w/ Hook: 175 Ton National
Rotary Table: 27-1/2″ with Master Bushing
Swivel: 150 Ton
Links: 150 Ton
Generator Equipment & Lighting
- (1) Caterpillar model C9 with a Cat LC5 225 KW
- (1) Detroit Series 60 with a Marathon 450 KW packaged generator sets on three-point skid rated for 480/400 V, 0.8PF, 3-phase, 60 Hz prime power service
- Generator building complete with MCC and generator synchronization
- Includes all necessary wiring and electrical rig-up from AC generators to MCC in generator/power control house
- Lighting includes fluorescent, flood and Crown lights for mast, carrier, substructure, area lighting.
Mud System
Capacity: 630 BBLS Active
No of tanks: 2
Shakers: Dual Derrick
Mix Hopper: Single
- Electric driven centrifugal pumps for solids control functions
- Equipment includes 4-panel shaker, mud agitators & bottom mud guns
- Oilfield type skid and required plumbing
Mud Pumps
Qty: 2
Input HP Rating: 1000 hp
Model: Mud King MKP 1000 triplex
Power: CAT C27 (1000 HP @ 1800 RPM)
- Two 1000 hp triplex mud pump, unitized with single engine independent cross-mounted pump drive for rear mounting Caterpillar C27 1000 hp engine and Allison transmission DP8961
- Remote air control with hose to driller’s panel, includes throttle, clutch control & emergency shutdown
- Two 5×6 supercharging pump driven by pinion shaft
High Pressure Piping 4” 5,000 psi: Included
Miscellaneous
Diesel Tank: 8,000-gallon, double wall (w/ pumps)
Rotary Hose: 3-1/2″ x 5000psi
Catwalk& V-door: 5′ W x 42″ H x 60′ L
HYD Winches: (1) 5,000LBS & (1) 12,000LBS
Doghouse mounted above bottom doghouse with lockers, lubester & circulating pumps
Water tank with pumps, 400 BBLS
Accumulator, 3 station, (1) air pump, (1) triplex pump & (6) bottles
5-1/4” Hex Kelly & Spinner
350-ton Rineer Roto-tac power sub
Drill Collars range 2:
5 – 4-1/2” collars
15 – 6-1/4” collars
4 – 8” collars
Junk box with tongs, slips, elevators, cross overs, rotating head & lifting subs
Auto driller, wire line unit & drill recorder
