DRAWWORKS:

• RG Model JC28E, max speed 450 rpm – API spec 7K

• Rated @ 1300 HP

• Fast line pull 62,107 lbs

• Diameter: 40 inch x 25 inches

• ATD 330H axial thrust disc clutch (New from WPT 2 Qtr. 2013).

• Drawworks fitted with disc brakes – 14,330 lbs positive pressure per rim

• Disc brakes have separate hydraulic system

• Eaton model 324 auxiliary brake – water cool – separate tankage (Function tested by TCM-Offshore 2nd Qtr. 2013).

• 7,500 ft 1-1/4” drill line 6×19 EIPS IWRC RRL

• Crown-O-Matic toggle valve crown saver

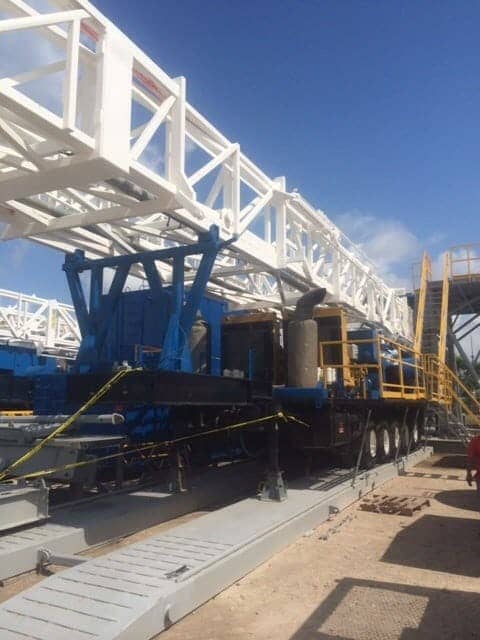

TRAILER:

• Model ES 9660 with Mast Crown and Standpipe

• (5) axle, triple steel board, balanced suspension. (2) Air lift (3) Spring, 12 x 20 double tires

• OAL 50’ L x 10’10” W x 14’ H with Mast on

• Back overhang 5’4”

• Axle spacing 4’6”

• (5) x 26,000 lbs. axles

SUBSTRUCTURE:

• Model ZZ225 rated at 500,000 lbs – pull test 580K

• Floor Height – 19’ 8-1/2” (scoped up)

• 11’6” W x 30’ L x 10’3” H (scoped down)

• Under Rotary 17’ 6”

• Clear area under beams – 15.7 feet

• Mechanical raise with adjustments for uneven locations

• Floor – 24 feet x 20 feet Complete with 2 walkways, and trailer walkway ladder. All built new 2 Qtr 2013

DERRICK AND TRAVELING EQUIPMENT:

• Mast Model JJ22 – API 4F Double (125’ x 505,000 lbs.) (Clear Height 105’)

• 53’10” (scoped in)

• Board heights – 72.2 feet/ 75 feet/ 78.7 feet

• Raising speed – 12 minutes from horizontal

• Hydraulically scoped (both cylinders repaired by Texas Hydraulic 2nd Qtr. 2013

• 3,500 feet 4 ½” pipe racking capacity

• Wind resistance – 110 km/hr

• Complete with explosion-proof lighting and parameter lighting repaired 2nd Qtr. 2013).

• Complete with Geronimo line, sala block, tong cylinders

• 4 inch x 7000 psi standpipe and 3” ID x 60’ kelly hose

• Crown Model TC225, 250-Ton capacity, 10 lines

ROTARY DRIVE SYSTEM:

• Model ZP 275 – 27 ½ inch opening rated @ 500-Ton– API 7K (Removed and Repaired by TCM-Offshore 2nd Qtr. 2013).

• Max speed – 300 rpm

• Static loading – 1,000,000 lbs

• Torque – 20,265 foot lbs

• Complete with 1, 2, and 3 bowls

• Right Angle Gear Box Driven (Shopped & Tested by TCM-Offshore, and spare in Doghouse).

• Permanent and ratcheting type locking systems

• Rotary torque sensor

• Master bushing rated for 500 Tons with API #3 interior – Pin drive

LIQUID CAPACITIES:

• Fuel Oil: 10,000 gallons 34’ L x 8’ W x 10’ H skidded c/w loading hitches

• Process tank: 70 barrels

• Drill Water: 18,000 gallons 30’ L x 10’ W x 10’ H skidded c/w loading hitches

RIG POWER:

• Two each Caterpillar C-18 (AR# 237-1955), (SN# WJH01434), (AR# 237-1955), (SN# WJH01431) electronic engines

complete with Alison 6061 transmissions

• Two redundant hydraulic pumps mounted on transmissions for raising/lowering Mast

• Compound box Model BXJ, input speed max 2500 rpm, output torque 19,176 foot lbs

• Rotary transmission – Model ZX140, 2100rpm max, input torque 10,360 foot lbs
