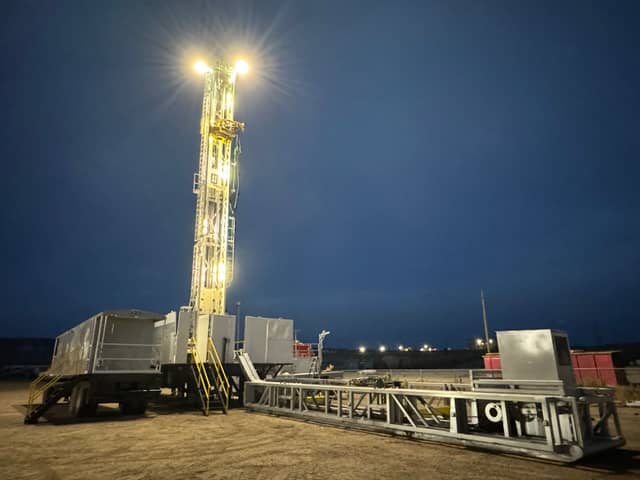

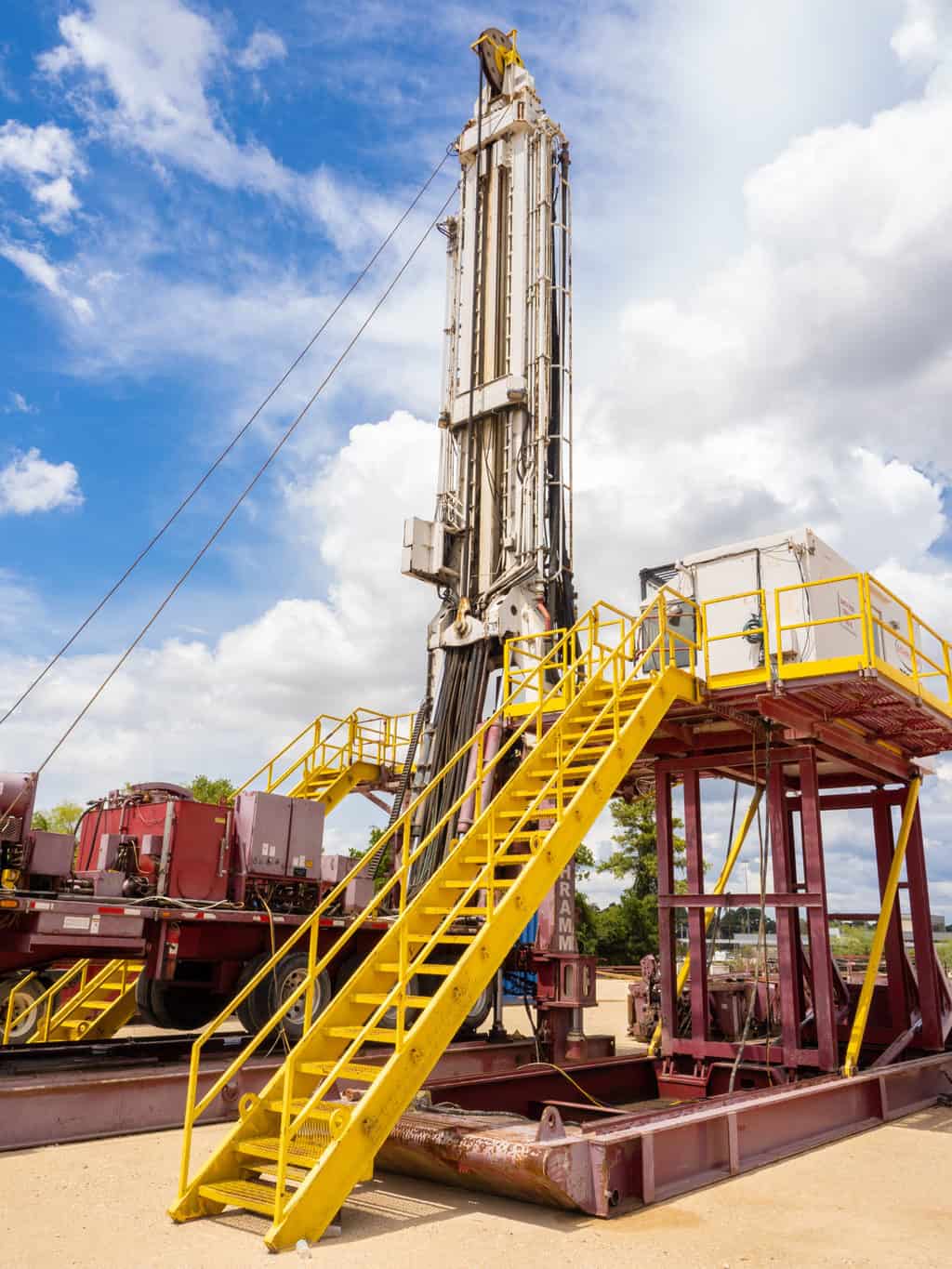

2014 Schramm T250XD Rig Package
$695,000
Breakout Slips | Hands-free power breakout (iron roughneck) accommodates tubulars with torque capacities up to 60,000 ft-lbs, along with hydraulically-actuated slips |
Drawworks | 2014 Schramm T250XD trailer-mounted hydraulic super single rig |
Drill Pipe Collars | Up to 11,000’ of 4 1⁄2” S-135 drill pipe, 15 joints of 4 1⁄2” HWDP, 15 joints 6 1⁄2” drill collars and three (3) 8” drill collars, all handled by Load Safe®XD automated pipe handler |
Driller Controls | 10’ x 15’ climate-controlled cabin with two precise joystick control stations provides automated rig floor, pipe handling and drilling controls |
Generator Set | Skid mounted gen house with dual 400 kw gen sets powered by Detroit Diesel Series 60 engines |
Mast And Top Drive | 94’ telescoping mast with 250,000# hook load; integrated tilting top drive |
Mud Pumps | Two skid-mounted MZ9 triplex mud pumps powered by 1,000 HP Caterpillar 3508 diesel |
Mud System | Dual-tank 800 bbl capacity mud system, with dual 28” x 46.5” screen Ruff shakers, desander, desilter, 3 Maxx 2000 mud agitators, mixing pump and charging pump |
Pipe Handling | Load Safe®XD automated pipe handler, capable of handling Range III pipe and large diameter casing |
Substructure | Sub base raised 15’ floor with 13.5’ clearance for well control equipment |
Well Control | 11” 5,000 psi double ram preventers hydraulically controlled by enclosed 12 station closing unit with remote; 11” 5,000 psi annular BOP; 2015 HCR valve; skid mounted 3,000 psi manual choke manifold and gas buster OR 11” 3,000 psi double ram Townsend LWS Style preventer, certified February 2017, hydraulically controlled by a 5 station Koomey Type 80 closing unit |
Auxiliary Equipment | Rigged up with Pason Electronic Drilling Recorder (EDR) 6,000 gallon fuel tank |
