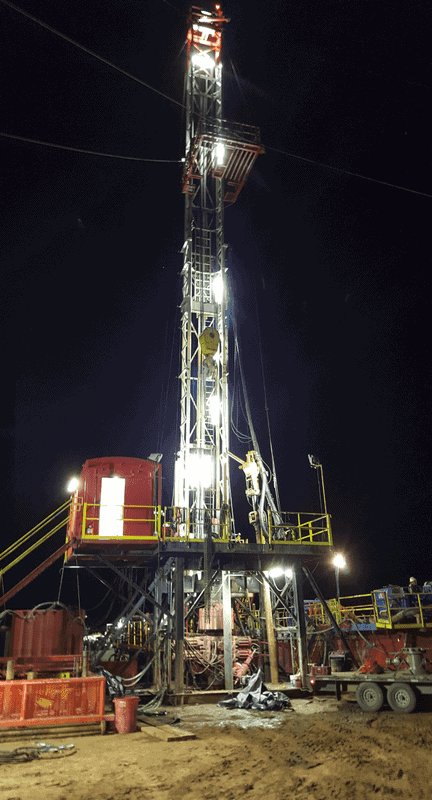

• Make & Model: Service King SK675
• Type: 675 Rotary & Optional 250T Top Drive
• Maximum Depth Rating with 4.5 16.6# PPF Drill Pipe: 8,000 ft
• Number of Loads: 19
• Tool House Pusher Trailer, rental
• Dog House Located on Floor Fork Lift 6K#, CAT rental

Rotary Drive

• Type/Size, Speed Range (rpm): 17.5 Hacker Hydraulic 0-100 rpm (17″ Drift)

Drawworks

• Main Drum Disk Brake with Brake Assist, SK90, SK 675
• Cable Size: 1-1/8″
• Number of Clutches: 2
• Engine Detroit Diesel, Series 60, 700 hp

Derrick

• Service King Mfg.
• 109 ft x 400,000 lbs.
• Maximum Number of Lines: 8
• Last inspection Date: 10-25-2015 (New)

Swivel

• IDECO TL-200, 200 TON

Pipe Spinner

• Hawk
• Model # 950H

Substructure

• Height: 10-20 ft
• Telescoping, 600,000 lbs.
• Height above Base of Sub to Underside of Rotary Beams: 8.4′-16.5′
• Wind Brake: Yes

Travelling Block

• IDECO-UTB-220, 220 TON, 8 LINES

Elevators

• 4.5″, 3.5″ Grant Pride Co

Catwalk Hydraulic Lift

• 54′ L X 42′ H
• Lift Height: 10′-27′

Pipe Racks

• 4 Sets, 54′ X 30′

Pumps

• 2- BomCo F-1000 Pumps 5K# OP, CAT C18 1250 HP Engines
• Liner Size & Stroke Length, Maximum: 10″ X 7″
• Maximum Continuous Operating Pressure: 5000 PSI
• Max SPM: 160 GPM. @ 85 SPM & 6″ X 10″: 312 GPM

Mud Pits

• (2) Each 40ft L X 10ft W X 6ft H
• Total Capacity: 700 BBLS with 7 Compartments
• Shale Shaker: Nov King Cobra Dual
• Charge Pump: Mission 5X6

BOP’S Hydraulic Double Gate

• 11″, 5000 PSI

Accumulator

• Koomey MFG
• 12 Bottle

Rotating Head

• Williams

Choke Manifold

• WKM 4″, 5000 psi
• 2″ Choke, 5000 psi

Generator Plant

• 480V-250KVA (2) Engine- CAT 3406-DD and Series 60

Drill Pipe

• 4.5″ 16.6# G-105 & S-135 XH X 8000 FT (1/2 rental)

Fuel Tank

• 5000 GAL

Water Tank

• 500 BBL

Drilling Recorder

• Pason EDR & 24 Hour Chart
