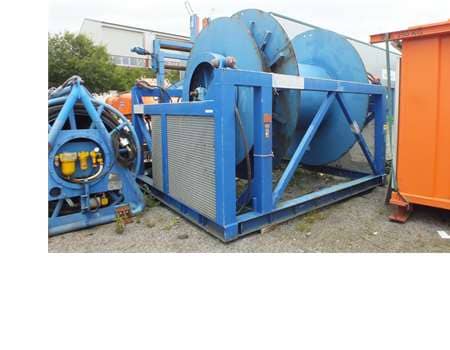

Hydraulic Reeler Winch for spooling umbilicals-, well service- flowline or riser hose.

Line pull Maximum configurable pull : 17 ton (1st Layer)
Line speed: 15 m/min (1st Layer)
Brake holding capacity: 25.5 Te / 25 500 Kg
Brake type: Auto Fail-safe on gearbox Drum speed 2,6 RPM
Hydraulic motor: M2 SAI
Gear box: Right Angled with output ratio 15,3:1
Oil pressure: 210 bar / 3000 PSI
Flow rate: 165 l/min Power requirements 75 kW @ 1705 RPM
Drum core diameter: 1700 mm
Drum flange diameter: 3581 mm
Drum between flanges: 2600 mm (1830 mm / 520 mm)
Control panel.
DNV Certified.

Overall Size (LxWxH): 4040 mm x 4454 mm x 2600 mm
Tara: 12000 kg
SWL: 21400 kg
MGM: 33400 kg

Previously used for cuttings injection services on offshore platform.
Capacity of e.g. 2" ID Coflexip high pressure hose ( 126 mm OD) x 700 m hose.

Recommended HPU: 75 kW, 440V, 60 HZ Zone 1 (not included).
