Units have all been fully inspected and all gears and bearings are within OEM running specifications. Fluid Ends have all been removed and have MPI inspection reports. New parts have all been installed if not within manufacture guidelines.

Specifications

• Rated Power: 1600 HP
• Maximum Speed: 120 RPM (at crankshaft)
• Minimum Speed: 40 RPM (at crankshaft)
• Stroke Length: 12”
• Gear Reduction Ratio: 4.31:1
• Rated Rod Load: 130,000 LB
• Pump Weight: 61,675 LB
• Valve Pot: API-7
• Maximum Fluid: 140° F
• Mechanical Efficiency: 90 %

Standard Equipment

• Precision-machined Structural Steel Fabrication
• Main Frame with access covers over crosshead area
• And inspection doors on each side
• Precision-machined forged steel/crankshaft
• L shaped National fluid ends with Southwest quick change valve covers
• Pressure: 7500 psi
• Liners and Pistons
• Polyurethane valves and seals
• P-Quip Liner retention
• Self-Aligning piston rod and clamps

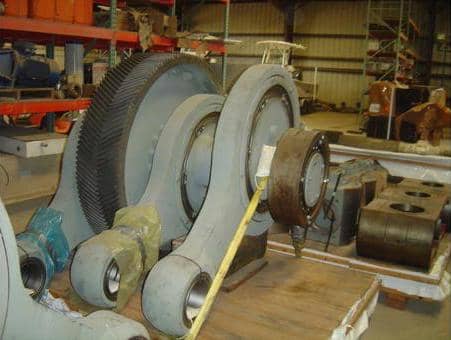

• Double Helical Pinion Shaft and Bull Gear

Piston/Liner / Gear End Lubrication System

• 1” x 1-1/2” Centrifugal Pump
• 3 HP Motor, Class 1, Div. 1, 3PH, 230/460V
• 60Hz, 182TC, 1735 RPM, TEXP
• Suction and Discharge Lines
• External Electric Driven Lube Pump for Gear End Lubrication
• 4” API 10,000# discharge flange connections
• Three Runner Skid

Rear Mount Belt Drive

(For use with Reman 752 motor)

• Qty. 2 Motor Sheave
• Qty. 2 Pinion Sheave
• Qty. 2 Pinion Bushing
• Qty. 2 Kevlar V-Belt
• Qty. 2 Fabricated Steel Belt/Sheave Guard
• Qty. 2 Fabricated Steel Oilfield Type Motor Skid with Belt tensioning system

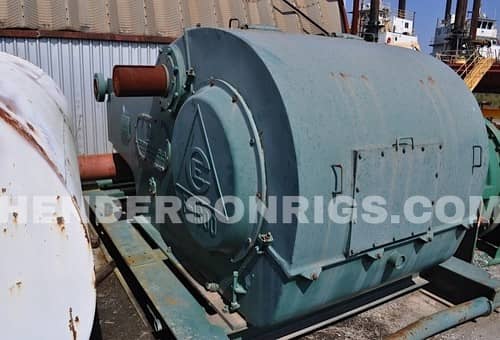

Reman 752 Motor

• Qty. 2
• 1000 HP
• Single Shaft Extension for Standard Horizontal Duty
• Series Wound, Standard Torque Coils
• Junction box with bolt-on connections
• Terminal strip
• UL approved lock out switch
• UL approved pressure switch
• 10 HP blower, mild steel, 3600RPM, 230/460 Volt
• Standard exhaust
• 535 MCM cables
• Standard oilfield hub
• Discharge Strainer with 4” gate valve and 1002 union

Charging Pump Systems – OPTIONAL

• 6 x 5 x 13” with 50HP Motor 1200 RPM
• Suction and discharge lines

Pressure Gauge Flanged

• 0 – 10,000 psi
• Standard Service
• 2”

Manual Reset Pressure Relief Valve Flanged

• 1,500 – 10,000 psi
• 3”

Pulsation Dampener

• Maximum Service Pressure: 7,500psi
• Surge Capacity: 20 gallons
• Connections 4” API BX155 10,000psi
