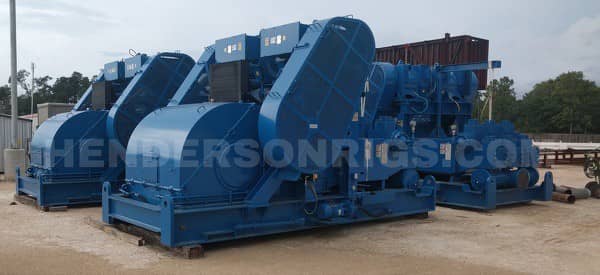

New Lewco W2214 2200HP Mud Pumps w/ GE Traction Motors
United States
New Lewco W2214 2200HP Mud Pumps w/ GE Traction Motors
United States
Description
High pressure mud pump rated at 2,200 HP (1640 kW), accommodates 5” (127mm)
8” (203mm) liners, flow rate 400 GPM – 1,000 GPM and operates at maximum pressure of 7,500 psi (51.7MPa).
Complete with the following Standard Features:
HP mud pump mounted on fabricated steel construction two runner skid equipped w/ four lifting eyes
Fabricated high strength steel plate power frame and stress relieved
Balanced crankshaft with forged internal core
Main and pinion gear manufactured to AGMA 11 Standard
Anti-friction roller bearings throughout
Three (3) two piece L-shaped modules
Power-end oil lubrication system driven by two (2) Brown & Sharpe (or equal) #4 pumps driven by electric motors mounted externally
Closed loop pressurized freshwater liner wash system, complete with integral water cooling tank equipped with centrifugal pump and driven by explosion proof electric motor
Two (2) oil sump tanks built into skid with magnet and clean out ports
5-1/8” API 10,000 discharge flanges
Suction Manifold equipped with 12” ASA 150LB raised face flange connections equipped with internal suction pulsation dampener
Suction line pressure transmitter
Discharge line pressure transmitter
Two (2) stroke counters in side of pump frame are supplied as standard wired into j-box
Twenty-Four (24) hour factory acceptance test
Paint: Blue color RAL 5017, suitable for offshore application
Minimum design temperature: 32°F (0°C)
Belt drive transmission: two each motor sheaves and QD mounted pump sheaves; banded Kevlar Vbelts; belt guards; for use with AC drive motors c/w 20HP blower assemblies
