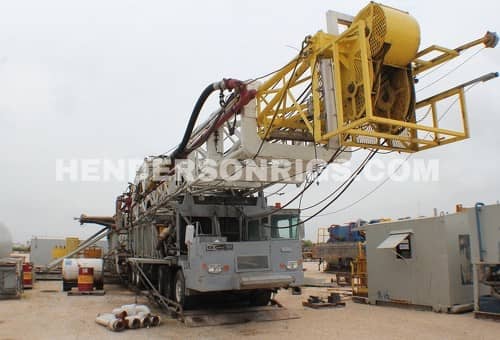

750 HP Trailer Mechanical

Drilling Depth Capacity: 9,500 W/ 4-1/2″ dp

Mast

Double telescoping 112 feet mast rated to 300,000 lbs SHL

Mud Pumps

Two (2) Bomco F-1000 each driven by

One (1) CAT D-399

Drill Line

1-1/8″

Rotary

IDECO 27 ½”

Block and Hook

– McKissick 150 Ton Block

– Web Wilson 150 Ton Hook

Swivel

IDECO TL 200-ton

Drill Pipe

4-1/2″ od 7,500′ 16.60 PPF

Drill Collars

– Eighteen (18) 6″

– Two (2) 8″

Annular Preventer

11″ 5000 psi WP

Ram Preventers

11″ 5000 psi WP double ram

Auxiliary Equipment

– Toolpusher and crew quarters

– 500 bbls water tank

– Automatic driller

– Pipe spinner

– Kelly spinner

– 8,000 gal Diesel

Substructure

– Cabot 15′ telescoping with 350,000 lbs rotary capacity with a setback capacity of 200 000 lbs

– 12 clear height from rotary beam to ground

Mud System

– Two (2) Tank 630 BBL System or one (1) tank 350 BBL system

– Dual (2) Derrick 503 Shakers

– Derrick 2 cone desander

– Derrick 8 cone desilter

– Drilco Degasser

Draw Works

Cabot Model 750 with Parkersburg 22″ single hydromatic brake and two (2) engine compound

OR

Cabot Model 750 with Parmac SR 22″ single hydromatic and two (2) engine compound

Choke Manifold

4-1/16″ x 2-1/16″ 5000 psi WP

Accumulator System

Koomey Type 80 with 5 station and remote 120 gal.

OR

JEBCO 5 station with remote 80 gal.

Power System

– Two (2) 60 Series Detroit Diesels with Allison 5860 transmissions and

– Choice of:

Two (2) CAT C-15 diesel engines with SR4B generators

OR

Two (2) Cat D-3408 diesel engines with One (1) 275 KW generators

– One (1) 375 KW generators
