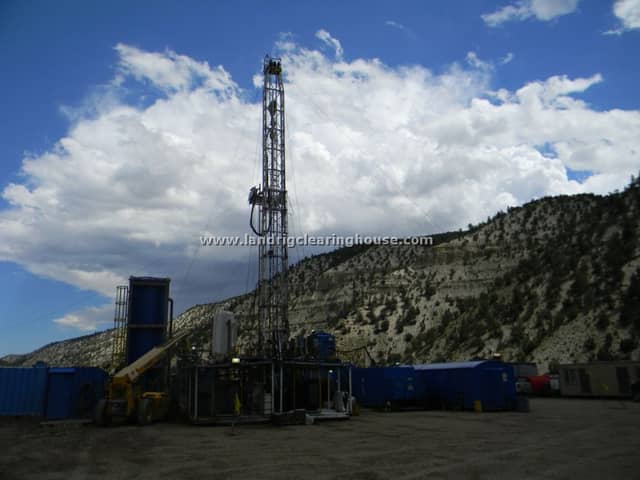

450 HP, Mechanical Drilling Rig

Drawworks:

Continental Emsco BD 350, 450 HP with parkersburg 40" single brake.

Substructure:

13' H x 17' W x 40'L, 320,000# setback capacity, Rotary Clearance - 11'6", KB-14'6"

Derrick:

Lee C. Moore 126', 275,000# Static Hook Load Capacity

Engines:

Two Cat 3406 Engines with twin disc torques, 475 HP Each

Mud Pumps:

Pump #1: Emsco D-500 w/ 500 HP Detroit

Pump #2: Emsco D-500 w/ 500 HP Detroit

Mud System:

Two Steel Pit - 650 bbls

Double screen shaker with (2) 50HP electric motors. 6 x 5 Centrifical pumps. Shale shaker - Swaco super screen, double screen

Blowout Preventers:

11" x 3000# Shaffer type A BOP with 4.5" pipe rams and blind rams. 5000# choke manifold.

Auxiliary Equipment:

Block: McKissick 150 ton

Hook: Web Wilson 150 Ton

Swivel: Emsco LA 200

Rotary Table: 17.5" Oilwell

Electric Power: One Cat 3306 with 175 KW Generator & One Cat

3406 with 300 KW Generator

Wireline Machine: Oilworks Inter-American model 1200 with .092 line

Air Hoist: Ingersol Rand model HUL-40 4000#

Accumulator: Four Station, 1-Airpump, 1 3' x 2 1⁄4' electric pump Fresh Water Storage: One 500 bbk Water Tank

Drill String:

24 - 6" Drill Collars, 8,500' 16.60 Grade E Drill Pipe
