Description

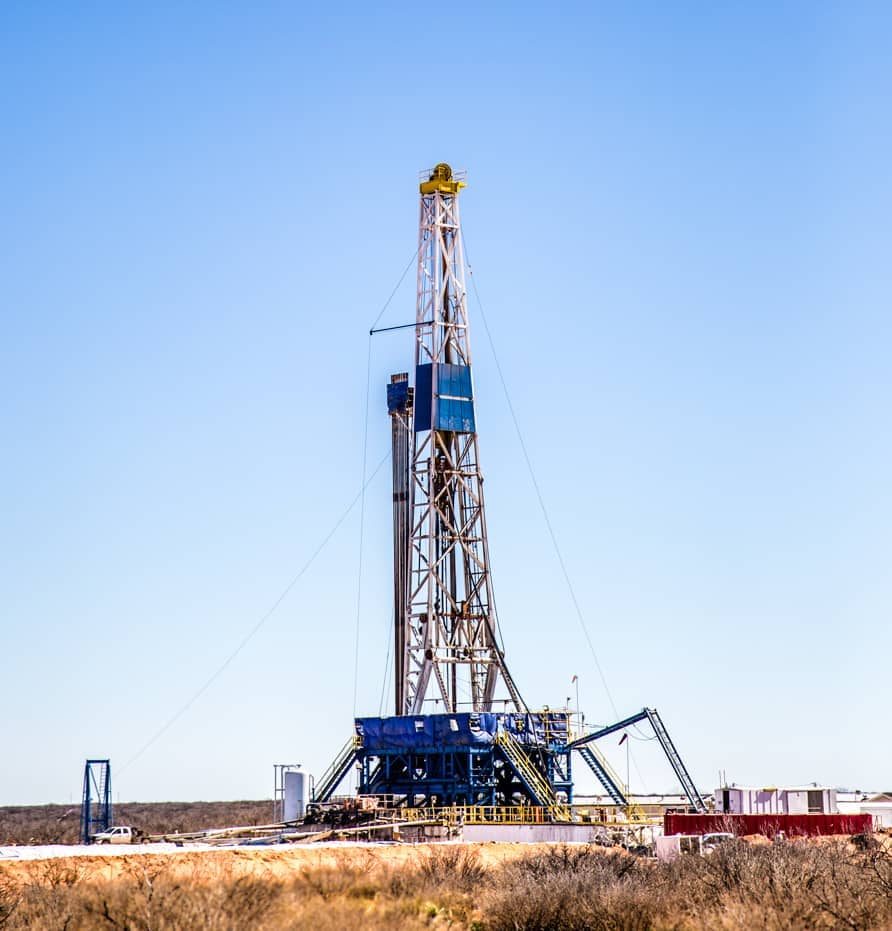

DRAWWORKS
National P-110UE
Input Power: 1,500 hp
Main Brake: 1,500 hp Baylor Break 6032 (Dynomatic) Aux Parking Brakes: OWI band brake system
SUBSTRUCTURE
OWI Box on Box
Floor Height: 30’
Rotary Capacity: 1,000,000 lbs. Max Pipe Setback: 750,000 lbs.
MAST
142’ OWI
Drill Line: 1-3/8”
Racking Capacity: 22,000’ of 5-1/2” DP
MANIFOLD
Total Oilfield 4 1/16 HCR with 4 1/16 x 2 1/16 wings 10000 Manual Chokes
ACCUMULATOR
Scarbrough 400 Gallons 7stations, (x4) pneumatic pumps and (x1) electric triplex pump
TOP DRIVE
Canrig 1250 AC 500 Ton Max Speed: 225 rpm Continuous Drill Torque: 51,000 ft-lbs.
Max Torque (Make/Break): 95,000 ft-lbs.
(2) 400 hp AC induction motor & drive system w/ PLC Integral 525 ton big shorty 5×42 block assembly
ROTARY TABLE
Gardner Denver 27.5
POWER SYSTEM
(3) 3512 Caterpillar Max hp 1500
Max Torque 4580 Max RPM 1400 1100 KW x 3
SCR HOUSE
Omron 3X4 with Auto Start, Auto Sync, and 3 Pump Capacity
MISCELLANOUS
Water Tank: 800 bbls Fuel Tank: 12,000 Gals Screw Compressor (x2) Sullivan 40 hp
TOOL / STORAGE / CAMP
Parts Storage Room and Tool House Room
Rig Manager Trailer: One 14’ x 62’ Mobil Home
PIPE
600’ – 5”- 19.50 – S135 600’ – 5”- 19.50 – G105
COLLARS
600’ – 8” – 2.25” ID – 6 5/8” Reg 1,000’ – 6 1⁄2” – 2.25 ID – 4 1⁄2 XH
WALKING SYSTEM
OWI Stealth Stompers
MUD PUMP #1
Gardner Denver PZ-11 Stroke: 11”
Input Power: (1) 1,600 Pressure Rating: 7,500
MUD PUMP #2
Gardner Denver PZ-11 Stroke: 11”
Input Power: (1) 1,600 Pressure Rating: 7,500
MUD PUMP #3
Gardner Denver PZ-11 Stroke: 11”
Input Power: (1) 1,600 Pressure Rating: 7,500
MUD TANKS
psi (51.7 MPa)
psi (51.7 MPa)
psi (51.7 MPa)
Two Tanks w/ 1,100 bbls total capacity
Shakers: (2x) Derrick Shale Shakers
Mud Gas Separator: (x1) Mi Swaco 48” (122cm) OD x 120” (305cm) tall
Trip Tanks: 80 bbls
BOP
13 5/8 Shaffer Annular 5000psi
13 5/8 Cameron Type-U Double Ram 10000psi 13 5/8 Cameron Type -U Single 10000psi
