Description

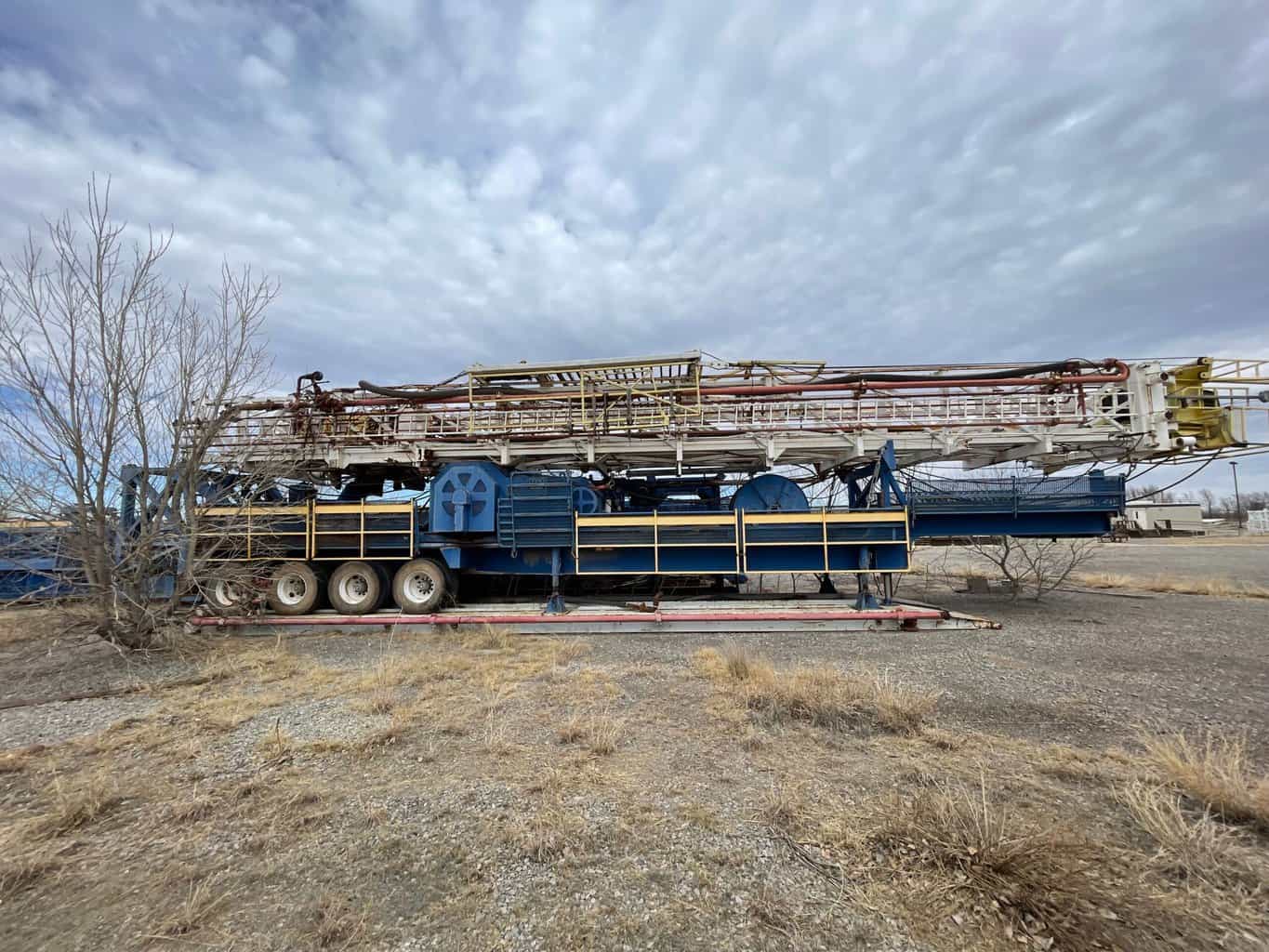

Drawworks: Crown CE900E 900HP. Powered by (1) 1000 HP traction motor. (1) CE 1000 F
Auxiliarybrake: Eaton Airflex 236

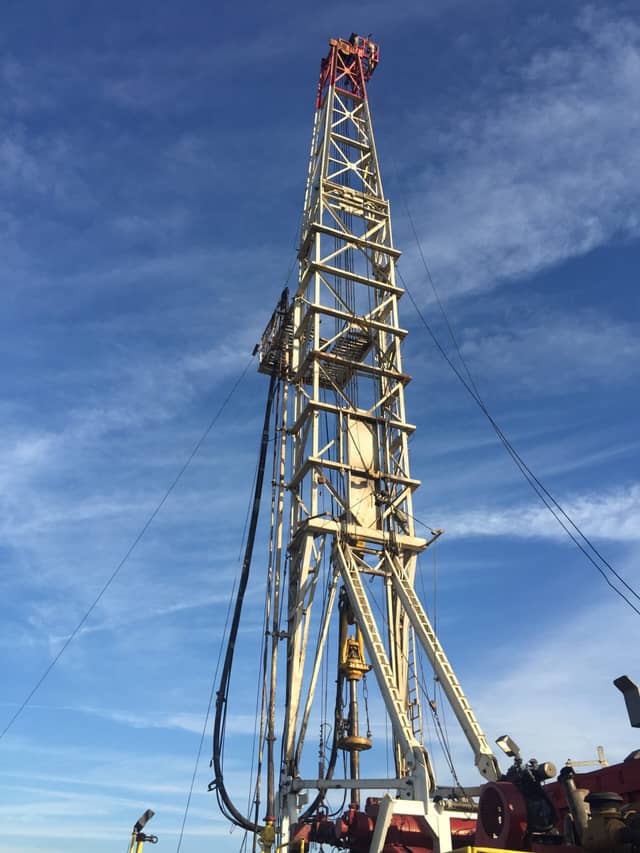

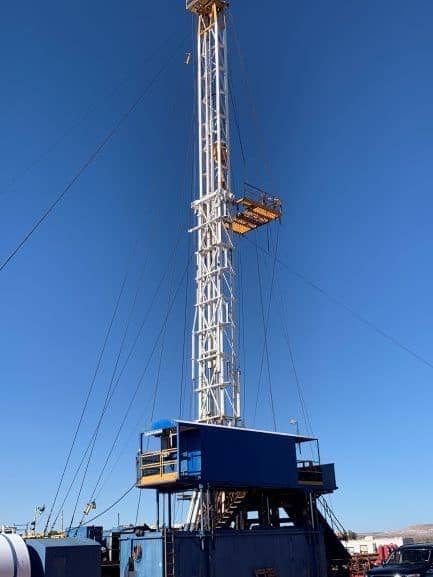

Mast: Crown Telescoping 118′. 440,000 lbs on 10 Lines
Substructure: Crown Telescoping w/18′ floor height
Traveling Equipment: Block Hook Ideco UTB 265-5-36, 265 ton
Rotary table: Hacker 20.5″ Independent Drive. Powered by (1) GE 752, 1000 HP traction motor
Drive System: Ross Hill 3×4 SCR Model 1400
Engines/Generators: 3 – Caterpillar 3508C I Kato 902kW generators
Mud Pumps: 2- National Oilwell 10-P-130, 1300 HP. Each powered by (1) GE 752 motor
Mud system: 2 Tank, 750Bbl w/ pit roofs
Solids Control Equipment: Shakers – 2 Mi Swaco Mongoose PT. Desander – National 2 cone. Destiller – National 8 cone
BOP Equipment: Annular – Shaffer Style Spherical 11″ 5K WP. Double: Shaffer LWS type 11″ 5K WP
Choke Manifold: 3″x3″ 5000 PSI
Closing Unit: Advanced Pressure 5 Station, 120 gallon
Auxiliary Equipment: 500 Bbl Water Tank. 14000 gallon fuel tank. 100 Bbl Trip tank. 2 Braden PD12C Hyd Hoists. 1 Ingersoll Rand K5U Air hoist. Hawk 550-H pipe spinner. Millennium Surveyor wireline machine.
Top Drive: FDS 2519, 250 ton.
